תצוגה מוגנת התפוצצות לעד 8 ערוצים בתקשורת PROFIBUS ו-FF – RID16

D16

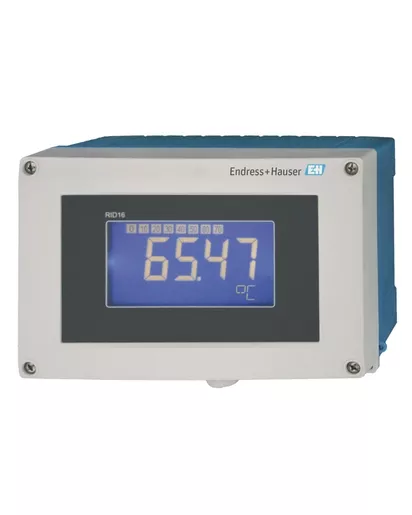

8 channel field indicator for fieldbuses
Indication of up to 8 process or calculated values for FOUNDATION Fieldbus™ or PROFIBUS® PA protocol
Predecessor: PROFIBUS-PA indicator RID261
o Display: 5-digit LC display, back lit, character height: 26 mm (1.02"), bargraph, plain text field for engineering unit or TAG;
Housing: field housing; Material: fiber glass reinforced plastic or aluminum (for Ex applications)
o Input: 8 channels for the indication of the values of the fieldbus slaves
Power supply: via the fieldbus; current consumption < 11 mA; Operation: FOUNDATION Fieldbus™: via the bus, PROFIBUS® PA: on-site via DIP-switches or via DTM and FieldCare o Approvals ATEX, FM, CSA, IECEx; Further functions: Diagnostic functions, Listener respectively on FOUNDATION Fieldbus™ also function block interconnection
