Reference Thermometers Fluke 1523 and Fluke 1524

Measure, graph and record three sensor types with one tool

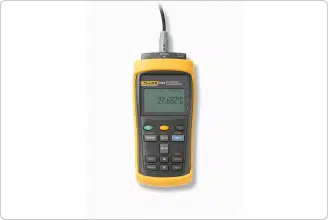

The Fluke 1523 and Fluke 1524 Reference Thermometers from Fluke Calibration measure, graph, and record PRTs, thermocouples, and thermistors. These thermometer readouts deliver exceptional accuracy, wide measurement range, temperature logging, and trending, all in a handheld tool you can take anywhere.

Reference thermometer efficiency

The Fluke 1523 and Fluke 1524 let you handle field applications, laboratory measurements, and data logging with ease. And with the dual channel measurement capabilities of the model Fluke 1524, you can do twice the work in half the time.

Three sensor types

• PRTs: –200 °C to 1000 °C
• Thermocouples –200 °C to 2315 °C
• Precision thermistors: –50 °C to 150 °C

Accuracy

• PRTs: up to ±0.011 °C
• Thermocouples : ±0.24 °C for J,K,L,M
• Precision thermistors: ±0.002 °C

Fast mode

• PRTs: 0.45 seconds per sample
• Thermocouples: 0.3 second per sample
• Precision thermistors: 0.3 seconds per sample

Two models

• Fluke 1523: Single channel standard model; memory for 25 readings and statistics

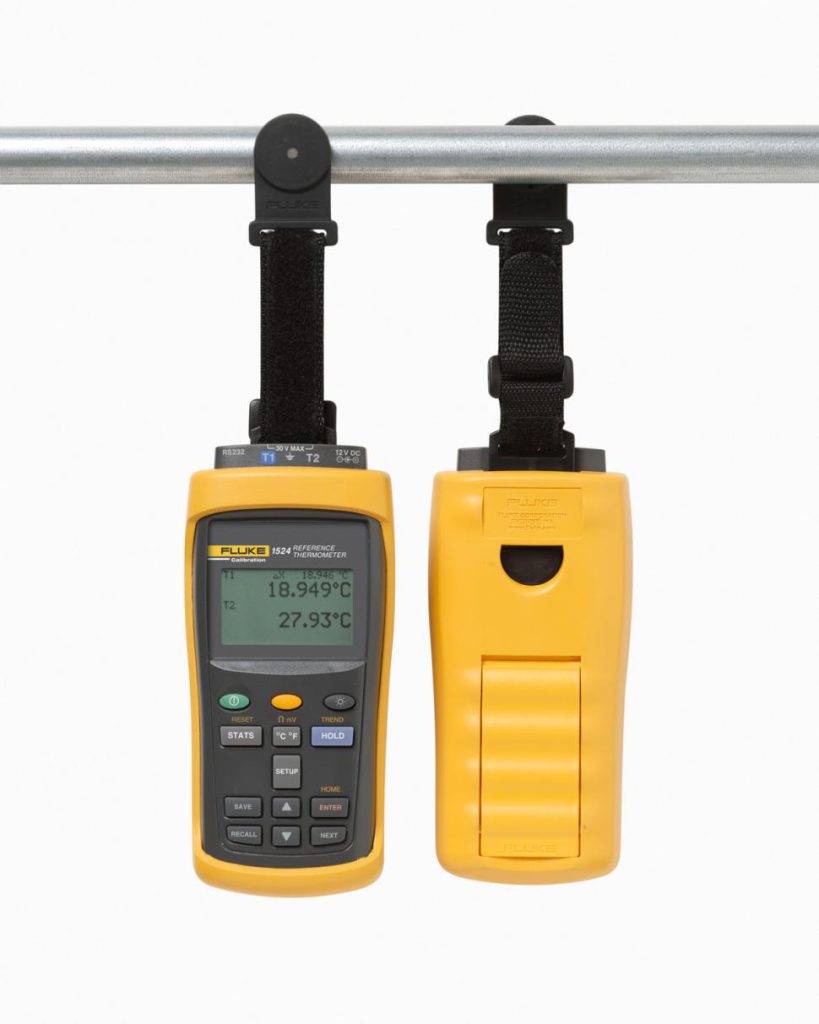

• Fluke 1524: Two channels; memory for logging 15,000 measurements; real-time clock for time and date stamps

Graphical display

• 128×64 backlit LCD graphic display
• Plot and scale trends in real time
• Simultaneous dual channel readings
