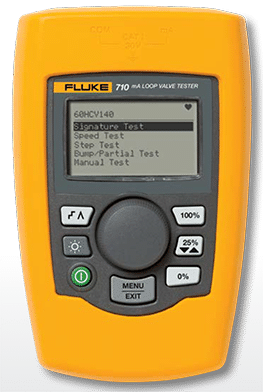

Fluke 710

Fluke 710 Offers

Features

• Key valve testing functions – valve signature test, speed test, step test, manual test, bump/partial stroke test
• Key mA loop calibrator functions – mA source, mA simulate, mA read, mA read/loop power, and volts read
• ValveTrack™ software – enables upload to a PC for further in-depth analysis of valve measurements that are logged and recorded to memory
• Valve test procedures that deliver Good, Marginal or Bad assessment of a control valve
• Generic HART communication
• Best-in-class mA accuracy at 0.01% measurement or source value
• Compact rugged design
• Intuitive user interface with Quick-Set knob for fast setup, easy to use
• 24 V DC loop power with mA measure mode (-25 to 125%)
• Resolution of 1 μA on mA ranges and 1 mV on voltages ranges
• Built in selectable 250 Ω resistor for HART communications
• Simple two wire connection for all measurements
• Auto shutdown to conserve battery life
• Variable step and ramp time in seconds
• Offers a built-in HART modem to communicate the following HART commands:
  • Read sensor PV information
  • Read PV output information
  • Read and write PV unit type, tag ID name, descriptor, and message
  • Read and write PV ranges (upper and lower)
  • Enter/exit fixed current mode
  • Set zero offset
  • Trim DAC zero (mA output 4 mA)
  • Trim DAC gain (mA output 20 mA)
