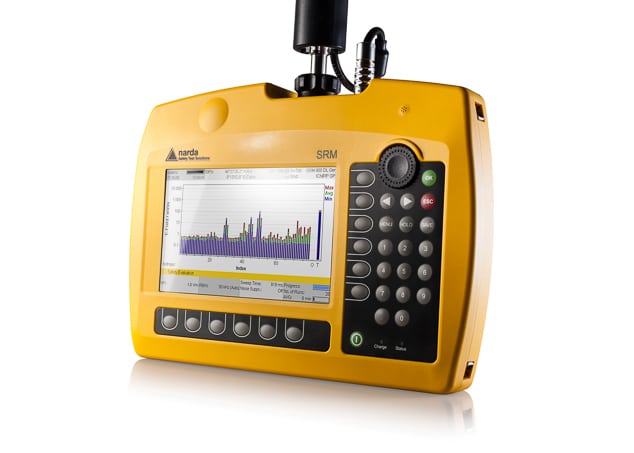

SRM 3006 Selective measurement of high frequency electromagnetic fields

Selective Radiation Meter currently up to 6GHz.
Soon support 5G uWave bands.

Selective Radiation Meter.

Main Features:
• Measurements conforming to ICNIRP and national standards with results displayed directly in terms of the permitted limit value
• Evaluate now already according to the new ICNIRP limits of 2020. More information under: –> Newsticker
• Fast, reliable results using predefined measurement routines, setups, and automatic settings
• LTE and UMTS operating modes for evaluating pilot signal information and extrapolation to maximum exposure levels
• Scope mode for short term analysis of pulsed signals and long term recording of variable exposure levels
• Editable tables for automatic correlation of results with telecommunications services (e.g. broadcasting, GSM, WiMAX)
• Individual preparation of field campaigns with subsequent evaluation and handling of large quantities of measurement data
• Suitable for outdoor use: Radiation protected, robust, splash-proof, ergonomically designed; uses exchangeable rechargeable batteries; equipped with G46
• 5G available. for low band.

Dimensions- 213 x 297x 77 mm (basic unit)
Weight with antenna- 3300 g
Color display- TFT-LCD 7 inch, 800 x 480 pixels
Frequency range- 9 kHz to 6 GHz
Temperature range- -10° to +50° C
Battery operating time- 3 hours +/- 15 minutes
