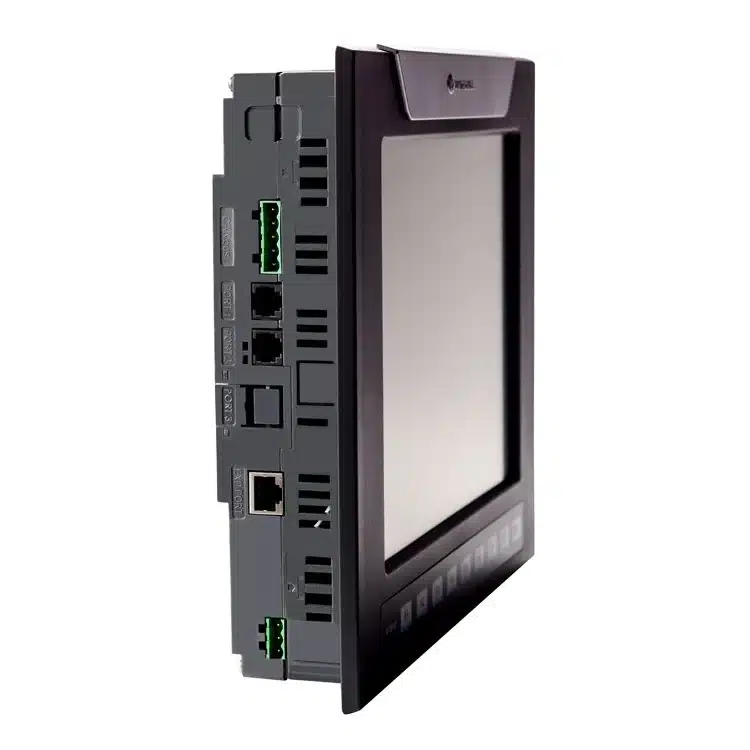

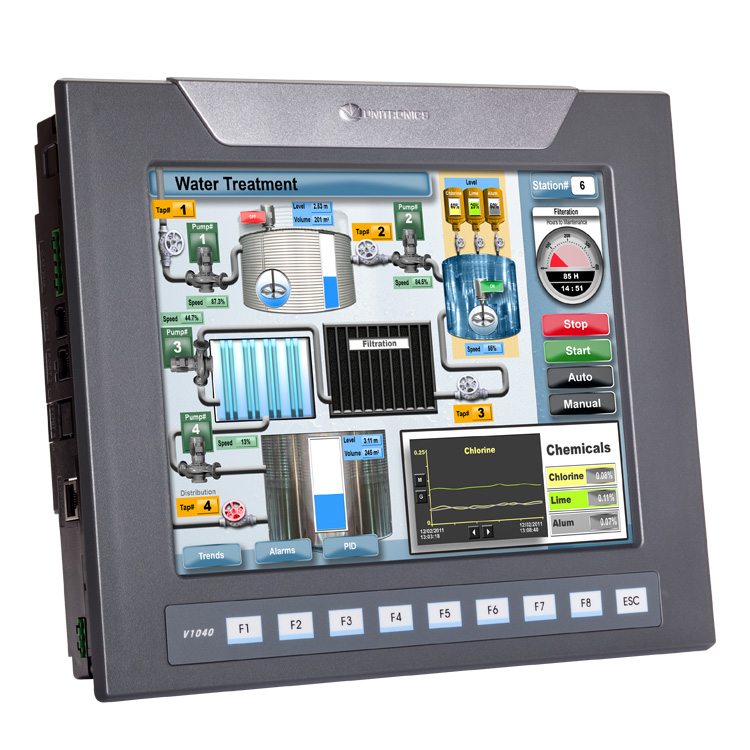

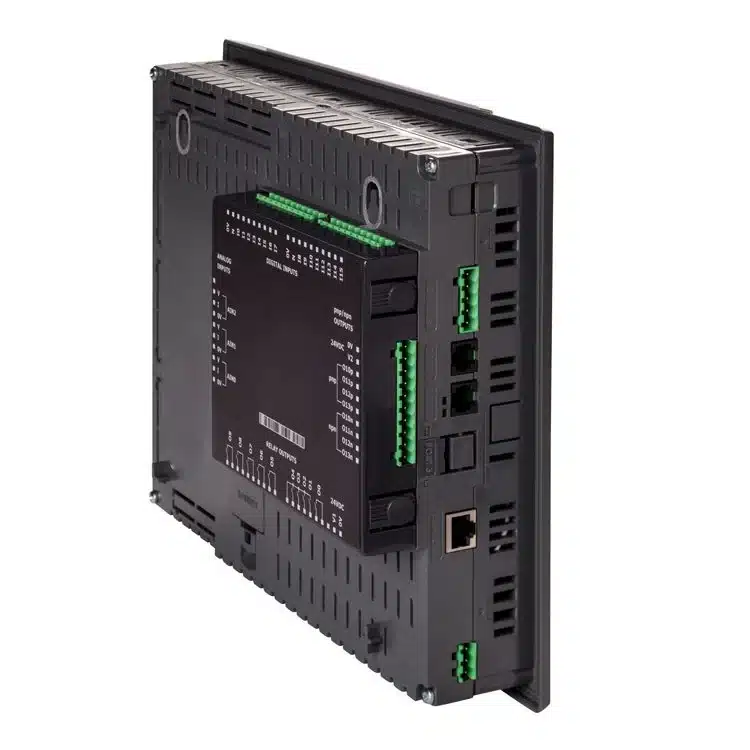

Vision1040™- Programmable Logic Controller + Built-in Quality HMI

בקר לוגי מתוכנת מתקדם אחורי ומסך 10.4 אינץ' ברזולוציה גבוהה. חיבור של I/Os מאפשר למכשיר להפוך לרב-תכליתי. מתרחב עד ל-1000 I/Os.

PLC

• Auto-tune PID, up to 24 independent loops
• Recipe programs and data logging via data tables
• MicroSD card – log, backup, clone & more
• Function Blocks

HMI

• High quality touchscreen
• Multi-language display
• Built-in Alarm Screens

Communication

• Mini USB for programming
• CANbus
• Isolated RS485/RS232
• 1 port may be added for an additional Serial/Ethernet

         Protocols:

• MODBUS TCP
• SNMP*
• CANopen, CANlayer2, UniCAN
• BACnet, KNX and M-Bus via gateway
• FB Protocol: for any 3rd party protocol

          General Features: Web server, E-mail & SMS, Remote access utilities, 3G Modem support

I/O

• Expand up to 1000 I/Os
• I/O options include digital, analog, high-speed, temperature & weight measurement.
