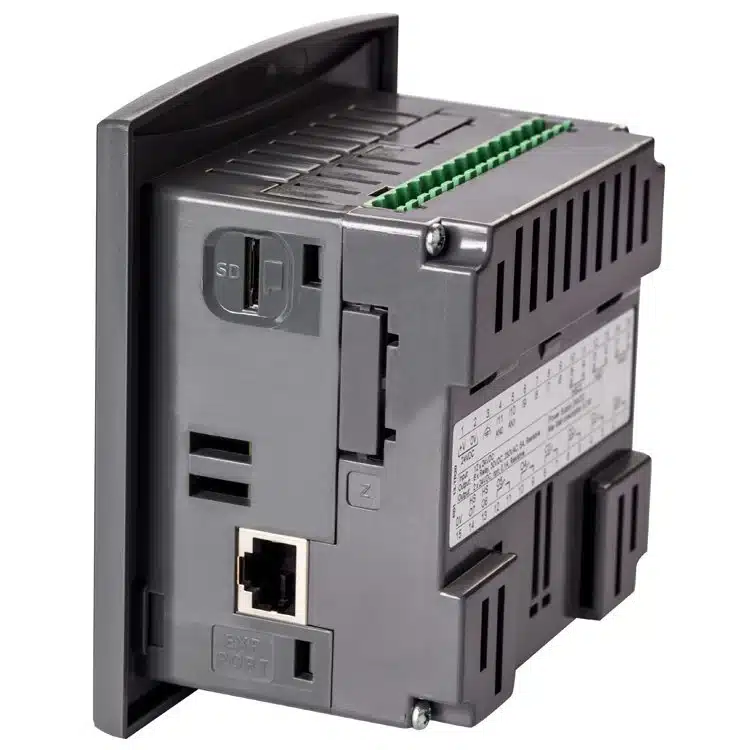

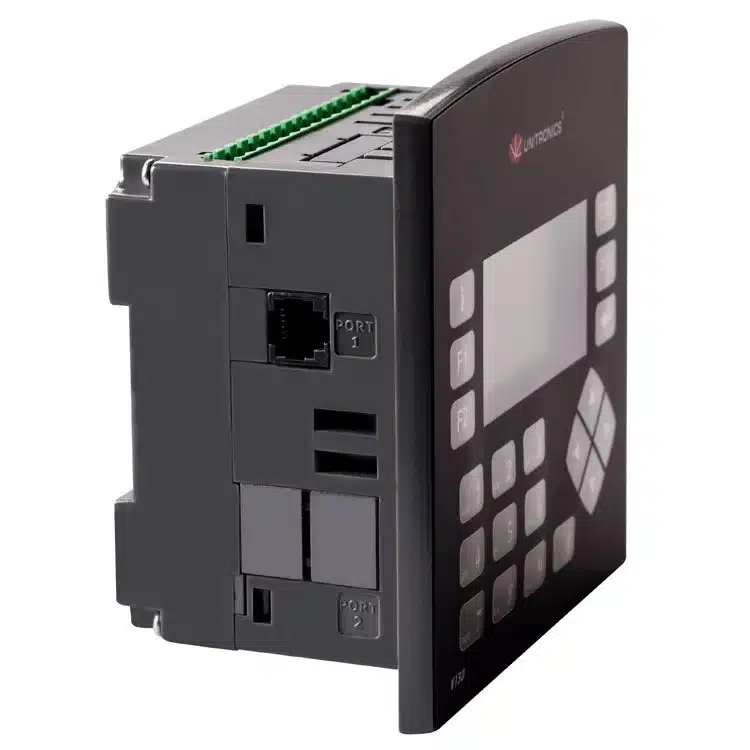

בקר לוגי מתוכנת (PLC) עוצמתי וקטן. מסך LCD שחור-לבן מובנה בגודל 2.4 אינץ'. תצוגה גרפית, לוח מקשים וקופניגורציות I/O על הלוח. מתרחב עד ל-256 I/Os.
PLC
- Auto-tune PID, up to 24 independent loops
- Recipe programs and data logging via data tables
- Micro SD card – log, backup, clone & more
- Function Blocks
HMI
- Monochrome
- Multi-language display
- Built-in Alarm Screens
Communication
- RS485/ RS232
- 2 ports may be added: 1 Serial/Ethernet/Profibus and 1 CANbus
Protocols:
- MODBUS TCP
- SNMP*
- CANopen, CANlayer2, UniCAN
- BACnet, KNX and M-Bus via gateway
- FB Protocol: for any 3rd party protocol
General Features: Web server, E-mail & SMS, 3G Modem support, Remote access utilities
* SNMP V1 Trap, SNMP community Name
I/O
- Expand up to 256 I/Os
- I/O options include digital, analog, high-speed, temperature & weight measurement.
Visilogic™ Software for Vision130™
All-in-One programming environment. Simple, fast development for both Ladder and HMI applications.
- Develop your programmable logic controller (PLC ) and HMI applications in one environment
- Configure hardware & communications
- Establish modem and data communications
- Test and debug your programs
- Software Utilities Suite: remote access and data management tools
