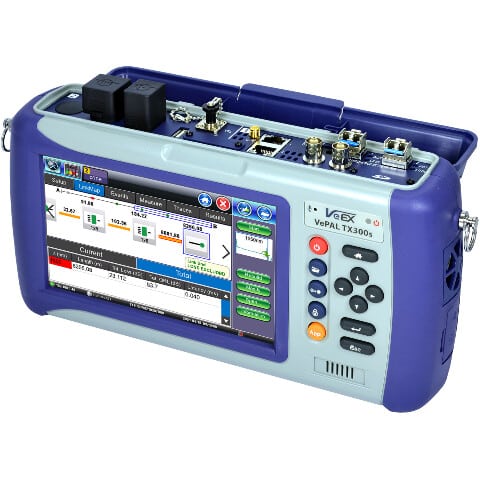

TX300s-OTDR Module Fiber Optics Test Option
The Fiber Optics test option for the VeEX® VePAL TX300s adds a full range of Optical test features that support OTDR, OPM, Light Source and VFL. Together with Advanced OTN, SDH/SONET, PDH/DSn, Ethernet, Fibre Channel, and Synchronous Packet Networks support, the TX300s offers a complete network test solution from physical layer up to higher layers of multi-service performance testing.
Fiberizer® software for Windows® Desktop, Android™, and/or Apple® mobile devices is available to assist in data transfer, record management, and report generation for various VeEX fiber optics testers. View the Fiberizer webpage for more details.
תיאור מוצר
Software
- Flexible software architecture supports dual test applications running simultaneously
- ReVeal™ PC software to maintain instrument firmware, manage test configurations, process measurement results and generate customer test reports
- Fiberizer Desktop PC software for fiber trace analysis
- Fiberizer Cloud based trace analysis and data management
- R-Server support for centralized work force management and test results repository
Hardware
- High resolution, 7” full color TFT touch-screen viewable in any lighting condition
- Connectivity via 10/100Base-T Management interface, WiFi™, Bluetooth®, or 3G Card for back office applications
- Built-in microphone and speaker for VoIP & VF applications
- Intelligent fan operation with built-in temperature sensor
- Interchangeable Li-ion battery pack for extended test time
- USB-A Interface for USB flash drives and fiber inspection probe connection
- Universal 2.5 mm optical interfaces with inter-changeable optical adaptors (SC/FC/ST/LC)
- Optional built-in GPS module for Geotagging OTDR traces
