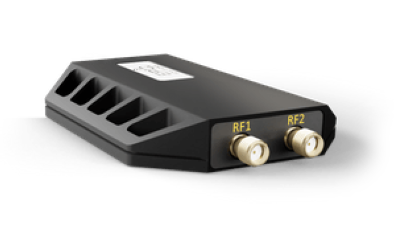

Epiq Matchstiq Z2

The Matchstiq Z2 is a small form factor software-defined radio transceiver that can be attached to the back of a tablet or laptop to provide Rx and Tx functionality.
This compact solution allows users to perform various radio tasks using existing mobile devices.

Rf coverage: 45 Mhz to 6 Ghz
bandwidth: Up to 50 Mhz per channel
Receivers: 1 channel
Transmitters: 1 channel
Integrated FPGAL AMD ZYNQ XC7Z010-2I System-on-chip
Form Factor: 8.73*6.19*1.42 cm
I/O: USB 2.0 UTG interface
Power consumption: ~ 2.5 W (typical usage)
